AB32VG1开发板硬件 SPI 测试与移植

1.00

发布于 2021-11-26 16:41:31 浏览：1113 订阅该版

[tocm]

# 一、前言
由于硬件SPI目前还未正式加入软件包，只出了一个示例，该示例可以直接运行。但我的工程是基于 1.0.9 版本的SDK建立的，直接使用该示例的demo会报错，所以根据这个示例包做一下修改，添加硬件SPI使用。

**硬件SPI示例地址**： [test_program](https://gitee.com/bluetrum/AB32VG1_DOC/tree/master/test_program)
![在这里插入图片描述](https://img-blog.csdnimg.cn/54e92ed425d645e7ac2802755a151a83.png)

# 二、替换步骤
## 1、复制demo源文件
`driver_common.h`、`driver_spi.h`、`spi_test.c` 三个文件复制到 `applications` 文件夹。

## 2、替换 `packages\bluetrum_sdk-latest` 下的 `libhal.a` 静态库
![在这里插入图片描述](https://img-blog.csdnimg.cn/b4286be96eaf4dd8b42a614b854b59a5.png)

## 3、修改 `ab32vg1_hal.h`
![在这里插入图片描述](https://img-blog.csdnimg.cn/69cbda262540466286345434e8859b89.png)
```bash
/*
 * Copyright (c) 2020-2020, BLUETRUM Development Team
 *
 * SPDX-License-Identifier: Apache-2.0
 */

#ifndef AB32VG1_HAL_H__
#define AB32VG1_HAL_H__

#include "ab32vg1_hal_conf.h"

void hal_set_tick_hook(void (*hook)(uint32_t ticks));
void hal_set_ticks(uint32_t ticks);
uint32_t hal_get_ticks(void);
void hal_mdelay(uint32_t nms);
void hal_udelay(uint32_t nus);
void hal_printf(const char *fmt, ...);

#endif
```

## 4、修改 `ab32vg1_hal.c`
![在这里插入图片描述](https://img-blog.csdnimg.cn/a7846ef97a5344218a5d623c21fb3655.png)
```bash
#include "ab32vg1_hal.h"

static uint32_t hw_ticks = 0;

static void (*tick_cfg_hook)(uint32_t ticks) = HAL_NULL;

void hal_set_tick_hook(void (*hook)(uint32_t ticks))
{
    tick_cfg_hook = hook;
}

void hal_set_ticks(uint32_t ticks)
{
    if (ticks != hw_ticks) {
        hw_ticks = ticks;
    }
    if (tick_cfg_hook != HAL_NULL) {
        tick_cfg_hook(hw_ticks);
    }
}

WEAK void hal_mdelay(uint32_t nms)
{
}

WEAK void hal_udelay(uint32_t nus)
{
}

WEAK void hal_printf(const char *fmt, ...)
{
}
```

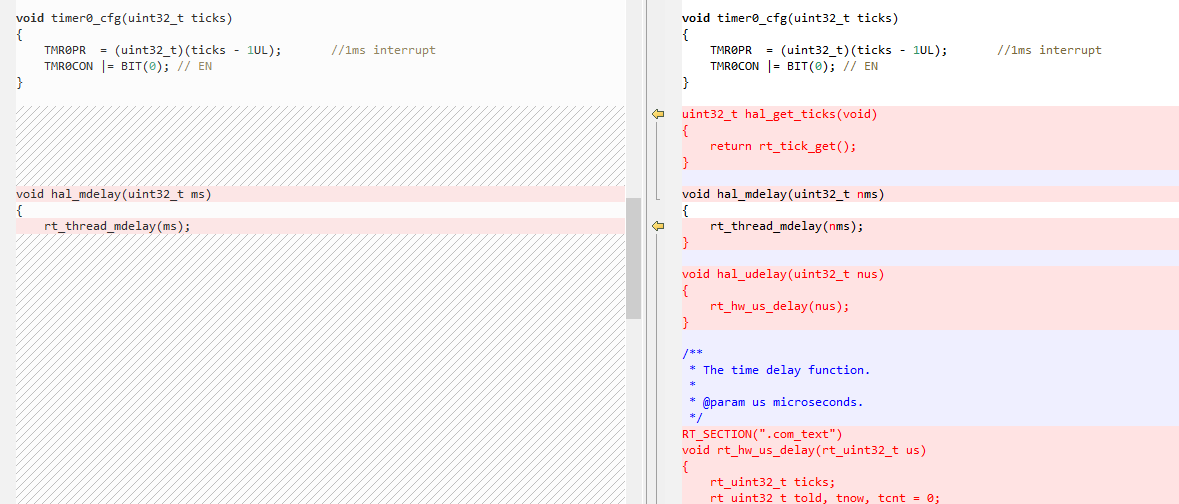

## 5、修改 `board.c`
![在这里插入图片描述](https://img-blog.csdnimg.cn/b8566a7d879e4aedb57a0cbfa811994e.png)

![在这里插入图片描述](https://img-blog.csdnimg.cn/1f6bab7b753f414abb1d46c559ec368b.png)

![在这里插入图片描述](https://img-blog.csdnimg.cn/2b886d88a78948c19e2d91fea9a6df2b.png)
```bash
/*
 * Copyright (c) 2020-2021, Bluetrum Development Team
 *
 * SPDX-License-Identifier: Apache-2.0
 *
 * Change Logs:
 * Date           Author            Notes
 * 2020-11-18     greedyhao         first version
 */

#include <rthw.h>
#include "board.h"

int rt_hw_usart_init(void);
void my_printf(const char *format, ...);
void my_print_r(const void *buf, uint16_t cnt);
void timer0_cfg(uint32_t ticks);
void rt_soft_isr(int vector, void *param);
void cpu_irq_comm(void);
void set_cpu_irq_comm(void (*irq_hook)(void));
void load_cache();
void os_cache_init(void);
void sys_error_hook(uint8_t err_no);
void huart_timer_isr(void);

typedef void (*spiflash_init_func)(uint8_t sf_read, uint8_t dummy);

static struct rt_mutex mutex_spiflash = {0};
static struct rt_mutex mutex_cache = {0};
extern volatile rt_uint8_t rt_interrupt_nest;
extern uint32_t __heap_start, __heap_end;

#ifdef RT_USING_CONSOLE
void hal_printf(const char *fmt, ...)
{
    rt_device_t console = rt_console_get_device();

va_list args;
    rt_size_t length;
    static char rt_log_buf[RT_CONSOLEBUF_SIZE];

va_start(args, fmt);
    /* the return value of vsnprintf is the number of bytes that would be
     * written to buffer had if the size of the buffer been sufficiently
     * large excluding the terminating null byte. If the output string
     * would be larger than the rt_log_buf, we have to adjust the output
     * length. */
    length = rt_vsnprintf(rt_log_buf, sizeof(rt_log_buf) - 1, fmt, args);
    if (length > RT_CONSOLEBUF_SIZE - 1)
        length = RT_CONSOLEBUF_SIZE - 1;
#ifdef RT_USING_DEVICE
    if (console == RT_NULL)
    {
        rt_hw_console_output(rt_log_buf);
    }
    else
    {
        rt_uint16_t old_flag = console->open_flag;

console->open_flag |= RT_DEVICE_FLAG_STREAM;
        rt_device_write(console, 0, rt_log_buf, length);
        console->open_flag = old_flag;
    }
#else
    rt_hw_console_output(rt_log_buf);
#endif
    va_end(args);
}
#endif

RT_SECTION(".irq")
void os_interrupt_enter(void)
{
    rt_interrupt_enter();
}

RT_SECTION(".irq")
void os_interrupt_leave(void)
{
    rt_interrupt_leave();
}

typedef void (*isr_t)(void);
RT_SECTION(".irq")
isr_t register_isr(int vector, isr_t isr)
{
    char buf[8] = {0};
    rt_snprintf(buf, sizeof(buf), "sys%d", vector);
    rt_isr_handler_t handle = (rt_isr_handler_t)isr;
    rt_hw_interrupt_install(vector, handle, RT_NULL, buf);
}

RT_SECTION(".irq.timer")
void timer0_isr(int vector, void *param)
{
    rt_interrupt_enter();
    TMR0CPND = BIT(9);
    rt_tick_increase();
#ifdef RT_USING_SERIAL
    huart_timer_isr();
#endif
    rt_interrupt_leave();
}

void timer0_init(void)
{
    TMR0CON =  BIT(7); //TIE
    TMR0CNT = 0;

rt_hw_interrupt_install(IRQ_TMR0_VECTOR, timer0_isr, RT_NULL, "tick");
}

void timer0_cfg(uint32_t ticks)
{
    TMR0PR  = (uint32_t)(ticks - 1UL);       //1ms interrupt
    TMR0CON |= BIT(0); // EN
}

uint32_t hal_get_ticks(void)
{
    return rt_tick_get();
}

void hal_mdelay(uint32_t nms)
{
    rt_thread_mdelay(nms);
}

void hal_udelay(uint32_t nus)
{
    rt_hw_us_delay(nus);
}

/**
 * The time delay function.
 *
 * @param us microseconds.
 */
RT_SECTION(".com_text")
void rt_hw_us_delay(rt_uint32_t us)
{
    rt_uint32_t ticks;
    rt_uint32_t told, tnow, tcnt = 0;
    rt_uint32_t reload = TMR0PR;

ticks = us * reload / (1000 / RT_TICK_PER_SECOND);
 told = TMR0CNT;
 while (1)
 {
 tnow = TMR0CNT;
 if (tnow != told)
 {
 if (tnow < told)
 {
 tcnt += told - tnow;
 }
 else
 {
 tcnt += reload - tnow + told;
 }
 told = tnow;
 if (tcnt >= ticks)
 {
 break;
 }
 }
 }
}

void rt_hw_systick_init(void)
{
 CLKCON2 &= 0x00ffffff;
 CLKCON2 |= (25 << 24); //配置x26m_div_clk = 1M (timer, ir, fmam ...用到)
 CLKCON0 &= ~(7 << 23);
 CLKCON0 |= BIT(24); //tmr_inc select x26m_div_clk = 1M

set_sysclk(SYSCLK_48M);

/* Setting software interrupt */
    set_cpu_irq_comm(cpu_irq_comm);
    rt_hw_interrupt_install(IRQ_SW_VECTOR, rt_soft_isr, RT_NULL, "sw_irq");

timer0_init();
    hal_set_tick_hook(timer0_cfg);
    hal_set_ticks(get_sysclk_nhz()/RT_TICK_PER_SECOND);

PICCON |= 0x10002;
}

void rt_hw_board_init(void)
{
    WDT_DIS();
    rt_hw_systick_init();

#ifdef RT_USING_HEAP
    rt_system_heap_init(&__heap_start, &__heap_end);
#endif

#ifdef RT_USING_PIN
    rt_hw_pin_init();
#endif // RT_USING_PIN

#ifdef RT_USING_SERIAL
    rt_hw_usart_init();
#endif // RT_USING_SERIAL

#ifdef RT_USING_CONSOLE
    rt_console_set_device(RT_CONSOLE_DEVICE_NAME);
#endif // RT_USING_CONSOLE

#ifdef RT_USING_COMPONENTS_INIT
    rt_components_board_init();
#endif
}

RT_SECTION(".irq.cache")
void cache_init(void)
{
    os_cache_init();
    rt_mutex_init(&mutex_spiflash, "flash_mutex", RT_IPC_FLAG_FIFO);
    rt_mutex_init(&mutex_cache, "cache_mutex", RT_IPC_FLAG_FIFO);
}

RT_SECTION(".irq.cache")
void os_spiflash_lock(void)
{
    // if (rt_thread_self()->stat == RT_THREAD_RUNNING) {
    if ((rt_thread_self() != RT_NULL) && (rt_interrupt_nest == 0)) {
        rt_mutex_take(&mutex_spiflash, RT_WAITING_FOREVER);
    }
}

RT_SECTION(".irq.cache")
void os_spiflash_unlock(void)
{
    // if (rt_thread_self()->stat == RT_THREAD_RUNNING) {
    if ((rt_thread_self() != RT_NULL) && (rt_interrupt_nest == 0)) {
        rt_mutex_release(&mutex_spiflash);
    }
}

RT_SECTION(".irq.cache")
void os_cache_lock(void)
{
    // if (rt_thread_self()->stat == RT_THREAD_RUNNING) {
    if ((rt_thread_self() != RT_NULL) && (rt_interrupt_nest == 0)) {
        rt_mutex_take(&mutex_cache, RT_WAITING_FOREVER);
    }
}

RT_SECTION(".irq.cache")
void os_cache_unlock(void)
{
    // if (rt_thread_self()->stat == RT_THREAD_RUNNING) {
    if ((rt_thread_self() != RT_NULL) && (rt_interrupt_nest == 0)) {
        rt_mutex_release(&mutex_cache);
    }
}

RT_SECTION(".irq.err.str")
static const char stack_info[] = "thread sp=0x%x name=%s";

void rt_hw_console_output(const char *str)
{
    my_printf(str);
}

/**
 * @brief print exception error
 * @note Every message needed to print, must put in .comm exction.
 */
RT_SECTION(".irq.err")
void exception_isr(void)
{
#if defined(RT_USING_FINSH) && defined(MSH_USING_BUILT_IN_COMMANDS)
    extern long list_thread(void);
#endif
    sys_error_hook(1);

#ifdef RT_USING_CONSOLE
    rt_console_set_device(RT_NULL);
    rt_kprintf(stack_info, rt_thread_self()->sp, rt_thread_self()->name);
#endif

while(1);
}

```

# 三、编译
再次编译就不会报错了：
![在这里插入图片描述](https://img-blog.csdnimg.cn/373e82eae1e547268169b2a250c422cf.png)

# 四、烧录测试
烧录完执行 `spi_test` 测试，代码里可切换`master`和`slave`模式。
![在这里插入图片描述](https://img-blog.csdnimg.cn/9a1e97eee3eb41a7bc9bbe64c283c05d.png)
